Tall cabinets MK

Tall cabinets MK

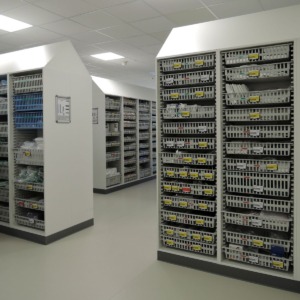

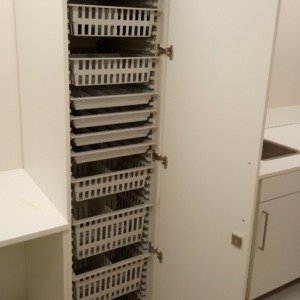

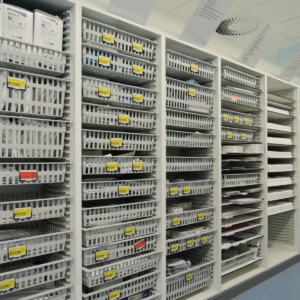

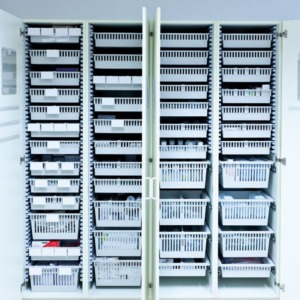

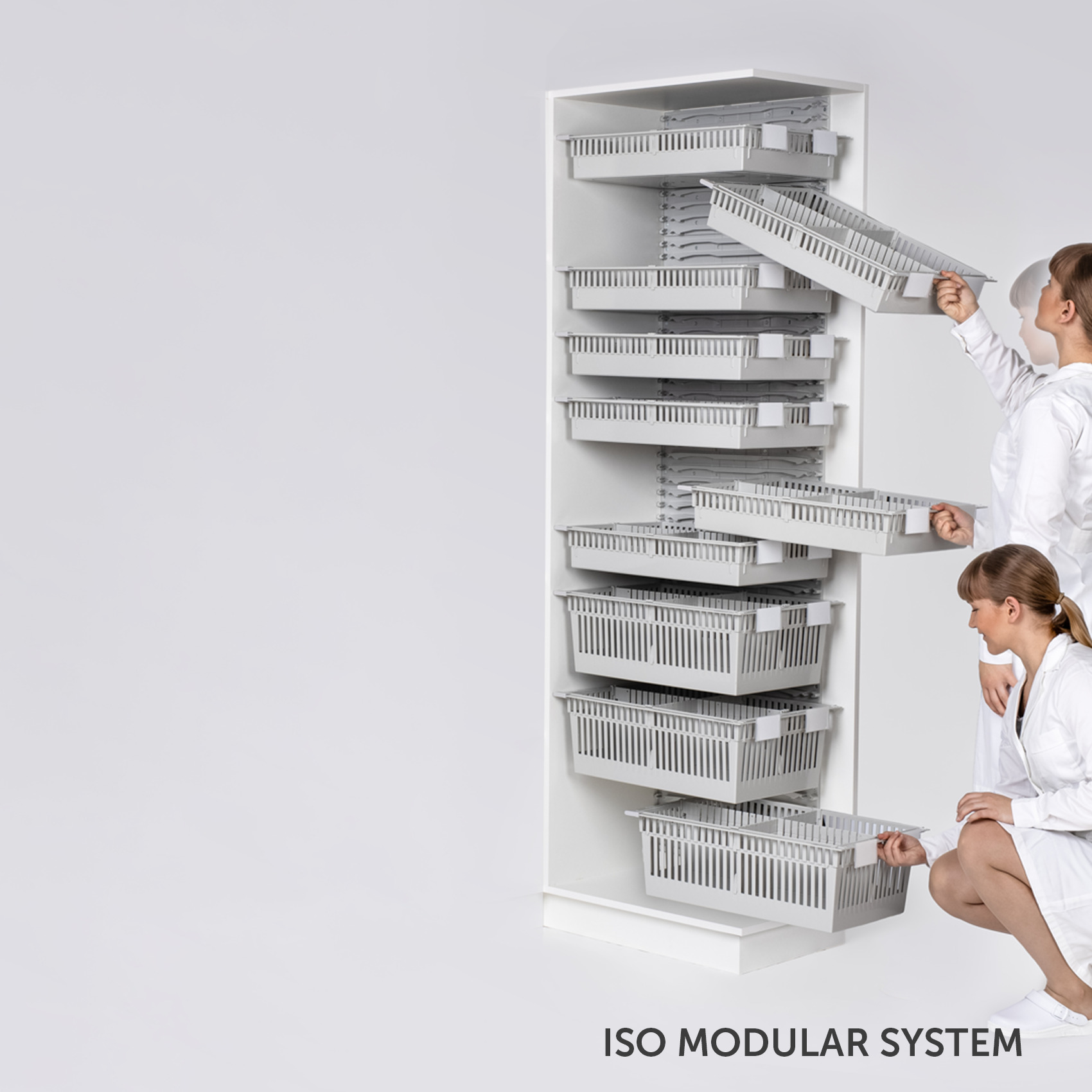

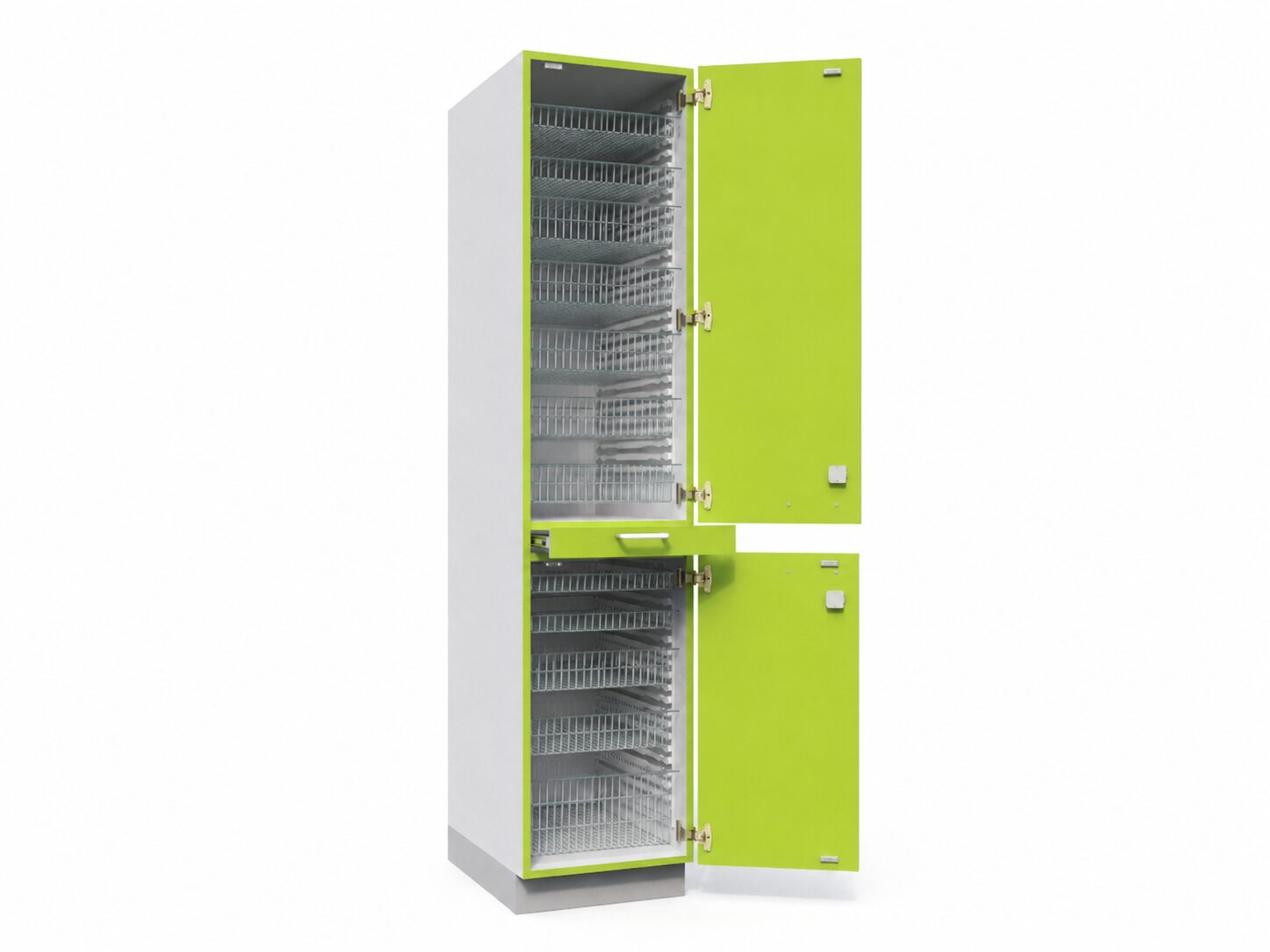

Merianto Medical hospital furniture is based on an ISO modular system using 600 x 400 mm and 400 x 300 mm baskets with the cabinet dimensions taking into consideration the modular system dimensions. The tall MK cabinets are designed for baskets with a width of 600 mm or 400 mm. The cabinet interior can be fitted as desired using ISO modular system baskets, shelves and drawer systems.

The medicine cabinets are produced from quality melamine and the materials also include an antibacterial surface finish. The cabinets can come with an open, or closed, facade. The doors open to 220°, and the drawers open 100%.

Facade options are:

Standard options include five different finishing’s:

Standard colors

It is also possible to select from a wider variety of different colours and finishes from the catalogues of melamine producers, the availability of which must be verified at the time of ordering.

Dimensions

Dimensions

Article L S H

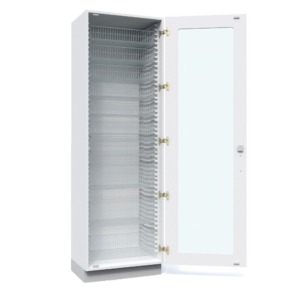

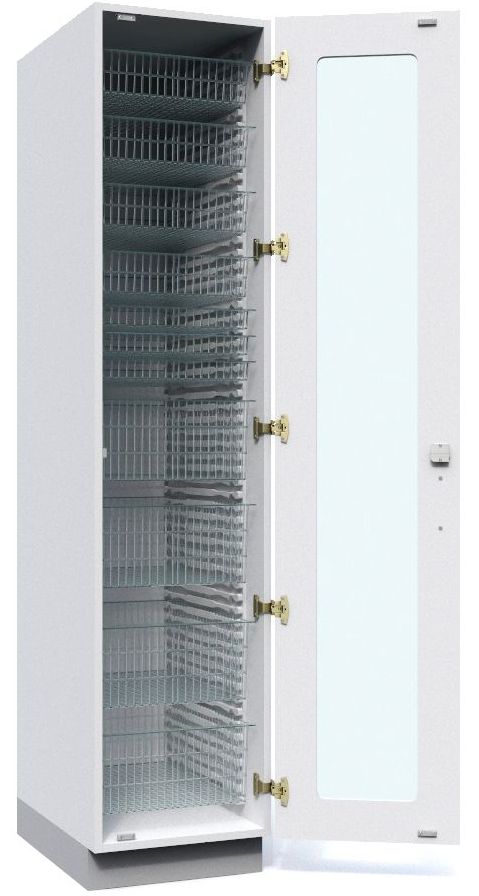

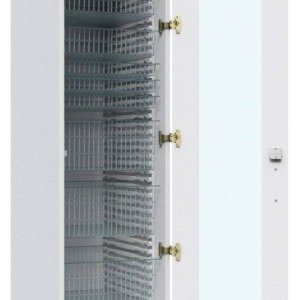

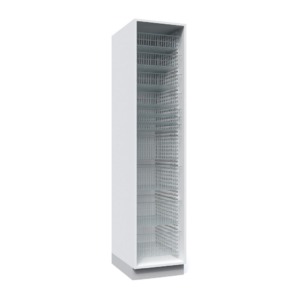

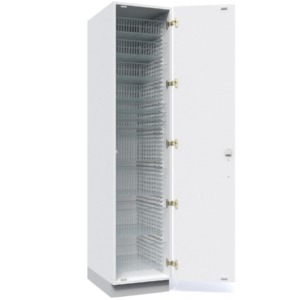

M-K4 455 mm 670 mm 2100 mm

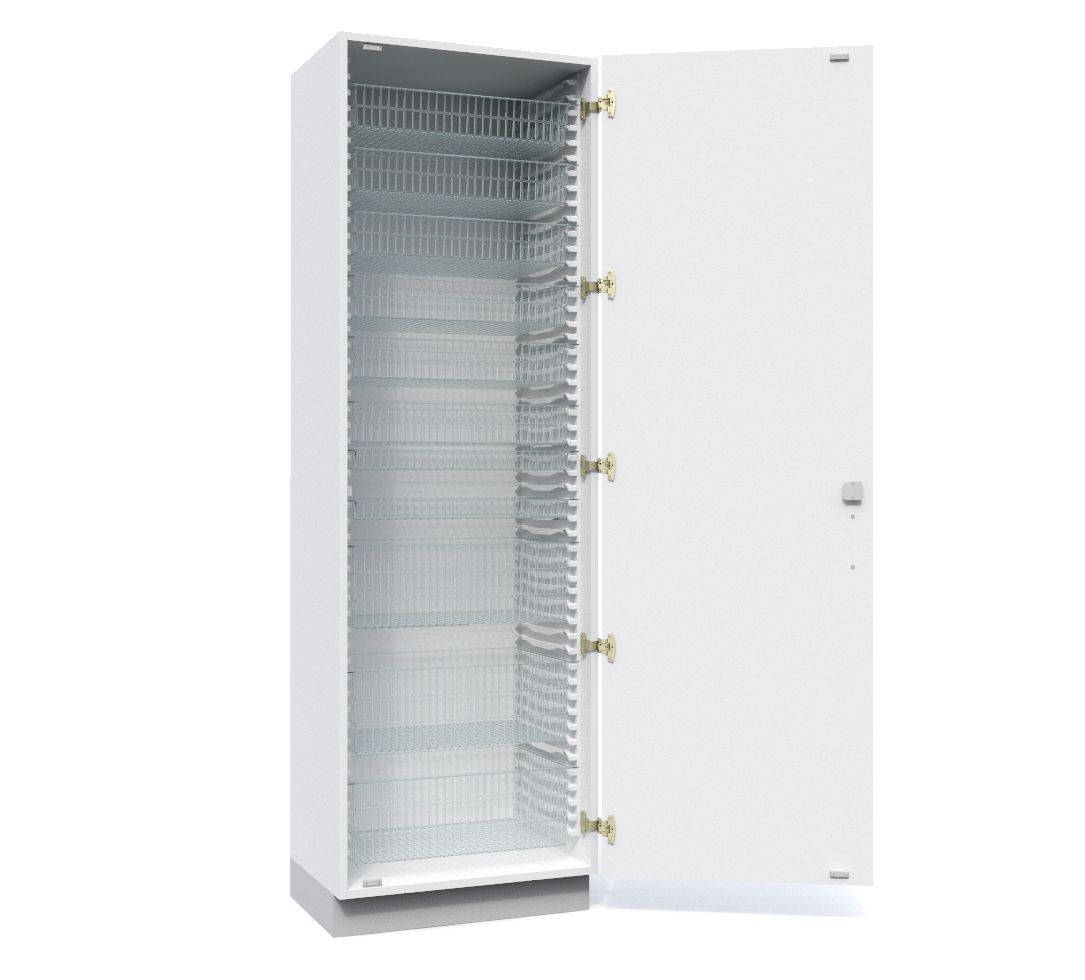

M-K6 655 mm 470 mm 2100 mm
M-K4S pivot slide door 525 mm 670 mm 2100 mm

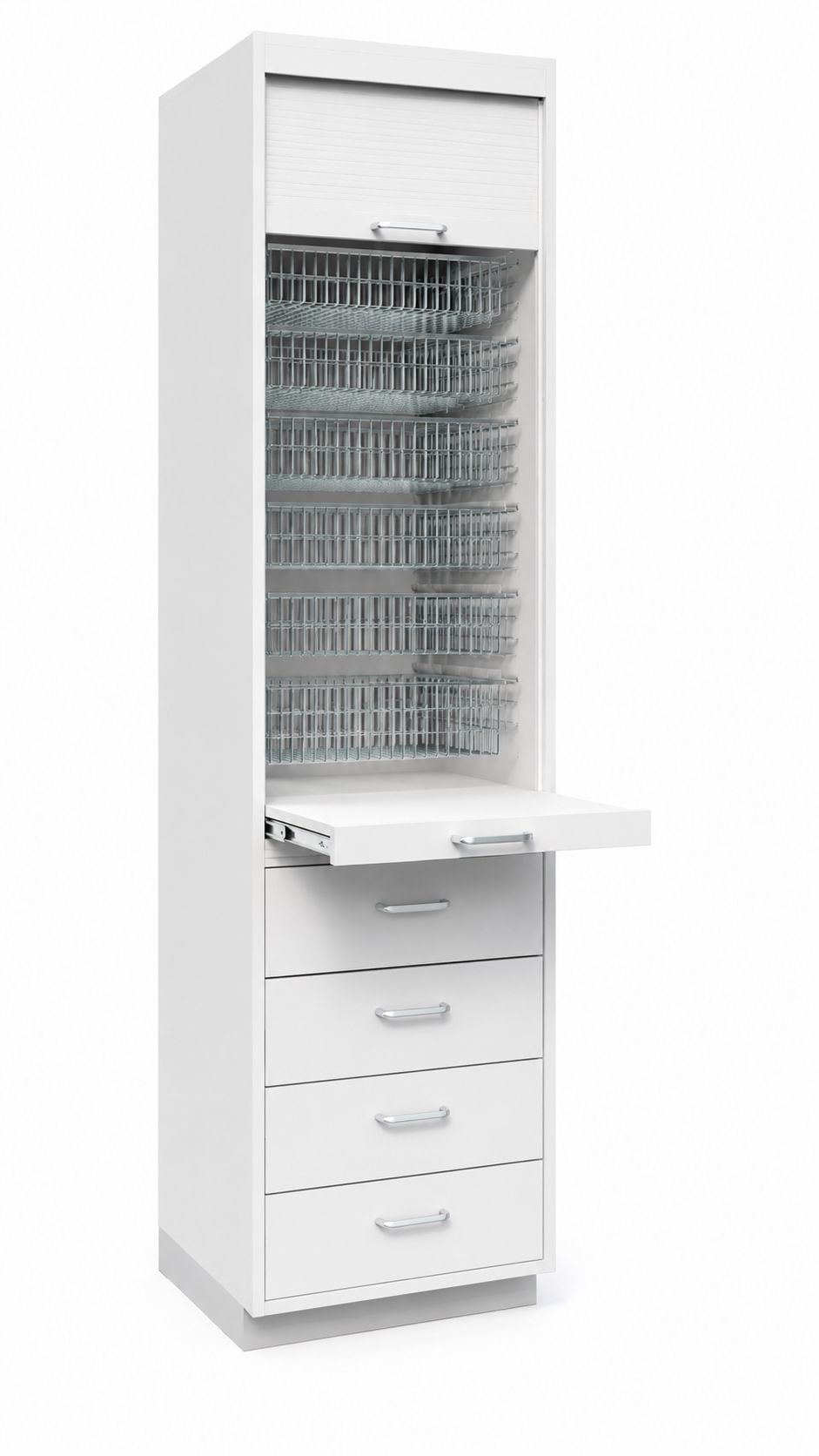

M-K4R tambour door 455 mm 670 mm 2100 mm
M-K6R tambour door 655 mm 470 mm 2100 mm
mm 470 mm 2100 mm

Description

  • The contents of the cabinets can be assembled according to the needs and using the baskets, shelves and drawers of the modular ISO system.
  • The baskets can withstand loads of up to 20 kg.

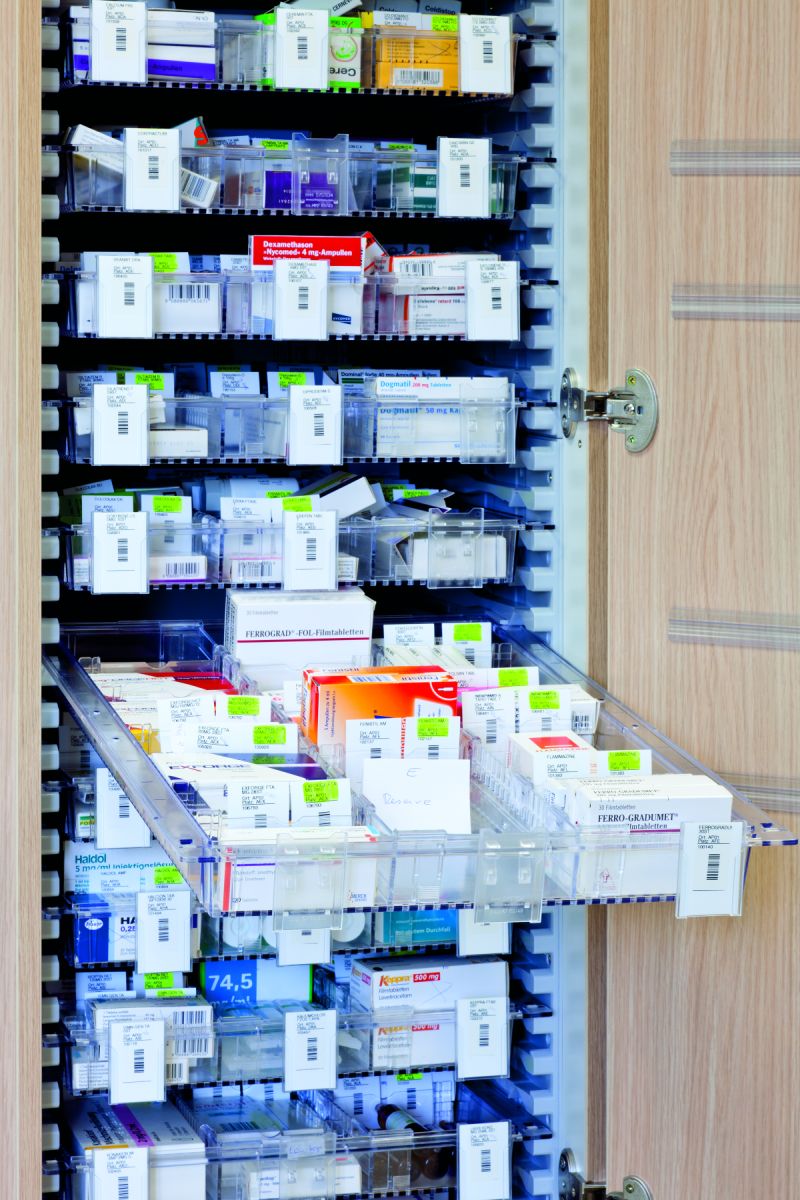

  • The drawers on ball runners can withstand loads of up to 50 kg.
  • All facade types are lockable. The locks can be organised into series, as desired, so that they are compatible with other cabinets in the same room, floor or area. The base selection includes a mechanical furniture lock, but an electronic code lock, or chip-card lock, can also be selected.
  • The doors have silicone magnets that ensure secure and soft closing.
  • It is possible to integrate sensor-activated LED lighting into all cabinets.
  • Handles are 128 mm long and have an antibacterial surface finish.
  • The cabinets may be installed on a closed base, open metal frame, or merely mounted to the wall, or even without feet (if the construction of the wall permits that).
  • It is possible to equip the cabinets with tops that are angled; this assists in avoiding dust collecting on the top surface.
  • ISO baskets have many different accessories, dividers, label holders etc., that create order and save space in the cabinets.    Further details.
